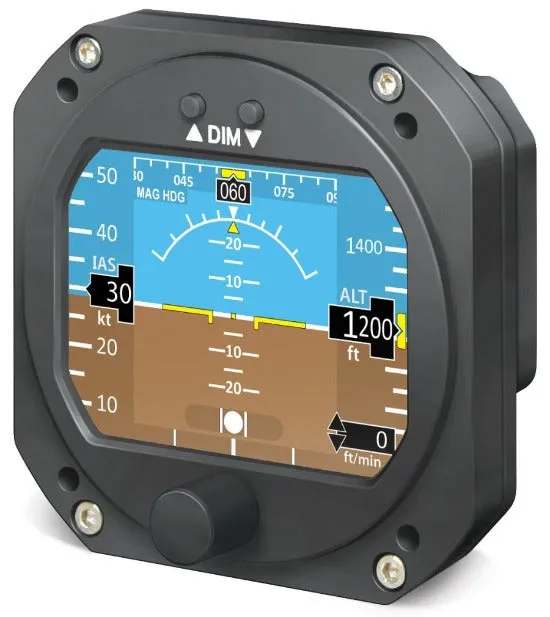

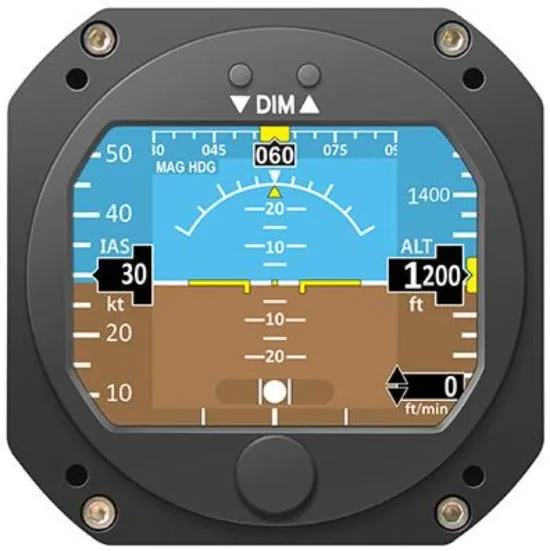

Mini 6 Multifunctional Indicator

The Mini6 indicator is the newest addition to RC Allen’s groundbreaking line of digital instruments. It offers all the instrumentation of a traditional Six Pack in one clean, customizable and easy to read presentation. The fully certified, easy to install indicator comes equipped with an internal battery backup providing an exceptional level of redundancy to any application:

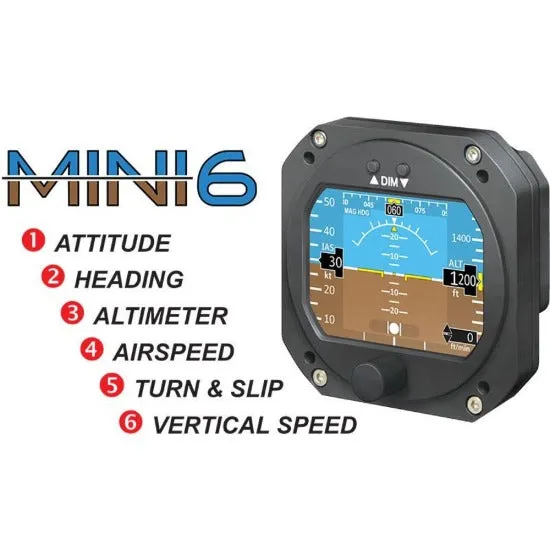

1. Attitude

2. Heading

3. Altimeter

4. Airspeed

5. Turn & Slip

6. Vertical Speed

EASY TO INSTALL

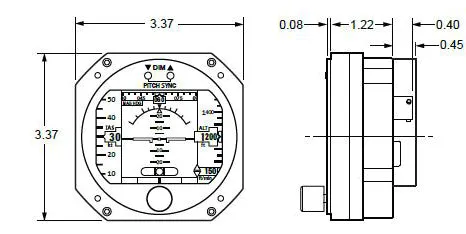

• Fits standard 3” cutout

• No panel modifications

• Rear mounted, matching the installation of standard 3” mechanical units

TSO CERTIFIED

• Holds: TSO-C4c, TSOC-113a, TSO-C3e and TSO-C6e, TSO-C2d, TSO-C10c and TSO-C8e.

• Environmental Certification: (DO-160G) Software Certification (DO-178B),

CUSTOMIZABLE

• Wide range of customization options including range marks, units and display features

• Selectable Heading Type (Magnetic Heading or Ground Track)

RELIABLE

• Internal battery backup

• Self-contained

• Solid state

• 2 year warranty
